Ex Power Supply UL

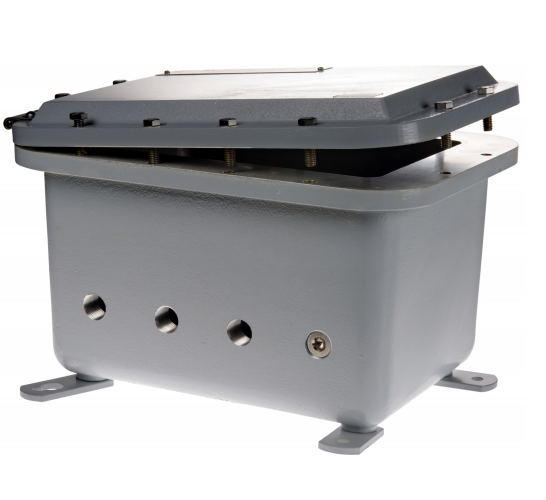

Explosion-protected power supply
The power supply is UL certified and it is made of epoxy powder coated copper free aluminum with stainless steel cover
bolts and hinges. It is premounted with fuses, terminals, RJ45 coupler and 115/230 V AC transformer, which provides
24 V AC for explosion-protected cameras. To enhance security and ease-of-installation, the power supply has three
open 3/4" NPT cable entries for cable conduits. The power supply can connect to 120 V AC, 230 V AC, or 24 V AC. The
operating temperature ranges between -40 °C to 55 °C (-40 °F to 131 °F).
> UL class I, division 1 certified
> Suitable for explosion-protected cameras

> 3/4” NPT cable entries
