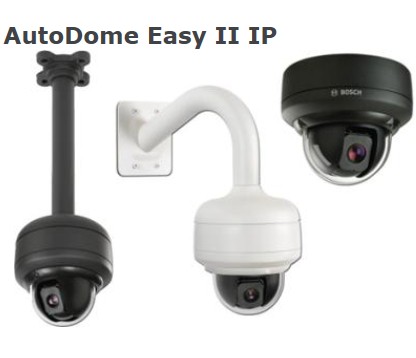

Bosch VEZ-211-EWCEIVA Outdoor AutoDome Easy II IP with IVA Clear 10x Color PAL

Product show

Product Numbers: VEZ-211-EWCEIVA

Price:0

Product introduction:Bosch VEZ-211-EWCEIVA Outdoor AutoDome Easy II IP with IVA Clear 10x Color PAL

Bosch VEZ-211-EWCEIVA Outdoor AutoDome Easy II IP with IVA Clear 10x Color PAL

VEZ-211-EWCEIVA Outdoor AutoDome Easy II IP with IVA Clear 10x Color PAL

Imager	1/4 in. Exview HAD CCD
	(752 x 582 PAL)/(768 x 494 NTSC)
Lens	10x Zoom (4.2–42.0 mm) (f/1.8)
Focus	Automatic with manual override
Iris	Automatic with manual override (F1.8 to F2.9)
Field of View	Approx. 4.6° (TELE end) to 46° (Wide end)
Gain Control	AGC on/off (28dB max)
Synchronization	Internal/external
Aperture Correction	User adjustable
Horizontal Resolution	530 TVL typical
Digital	12x
Optical Zoom	10x
Optical Zoom FOV	4.6° to 46°
Sensitivity (typical)	30 IRE
With Tinted Bubble*

SensUP Off	0.83 lx
SensUP On (1/4)	0.043 lx
*With optional clear bubble, approximately 0.6 F-stop improvement.
SNR	50 dB
White Balance	Auto, indoor, outdoor, 1 push

Standards	H.264 (ISO/IEC 14496‑10), M‑JPEG, JPEG
Streaming	Multiple, individually configurable streams in H.264 and JPEG,configurable frame rate and bandwidth
GOP Structure	I, IP, IPBB
Data Rate	9.6 kbps to 6 Mbps
Resolutions and Frame Rates
Name	NTSC
4CIF/D1	704 x 480, 30 ips
CIF	352 x 240, 30 ips
Overall IP delay	240 ms

Frame rate	1 to 50/60 (PAL/NTSC)
Network
Protocols	RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP
Ethernet	100 Base-TX, auto-sensing, half/full duplex, RJ45
Power over Ethernet (Indoor models only)	IEEE 802.3af
Unit Configuration	Via Microsoft Internet Explorer 7.0 Web browser or higher, Divar XF, Vidos, or Configuration Manager
Software Update	Flash ROM, remote update

Weight	1.3 kg (2.86 lb)
Pan Range	0-360° continuous
Tilt Angle	0-94°
Variable Speed	0.1°/s-120°/s
Pre-position Speed	Pan:360°/s Tilt: 100°/s
Preset Accuracy	± 0.1° typ.
Rated Voltage

Camera, Indoor	24 VAC ± 10%, 50/60 Hz orPower over Ethernet (IEEE 802.3af Class 3)
Camera, Outdoor	24 VAC ± 10%, 50/60 Hz
Heater, Outdoor Models	24 VAC ± 10%, 50/60 Hz
Power Draw: (typ.)
Indoor Models	12 W
Outdoor Models	Camera only: 12 WHeater only: 15 WTotal: 27 W
Operating Temp.
Indoor Models	–10°C to 40°C (14°F to 104°F)
Outdoor Models	–30°C to 50°C (–22°F to 122°F)
Operation Humidity	0% to 90% relative, non-condensing
Storage Temp.	–20°C to 60°C (–4°F to 140°F)
Environmental Rating
Indoor Models	Rated for indoor use only
Outdoor Models	Rated for IP65
Sectors/Titling	8 independent sectors with 16-character titles/sector

Pre-positions	99, each with 16-character titles
Guard Tours	Two (2) types of tours:•Recorded tours - two (2), total duration 15 minutes•Preset tour - one (1), consisting of up to 99 scenes, consecutively
Supported Languages	English, French, German, Spanish, Portuguese, Polish, Italian, Dutch, and Russian
Power
PoE, Indoor Models	RJ-45 100 Base-TX Ethernet Power over Ethernet IEEE 802.3af Class 3
Camera, All Models	24 VAC, 50/60 Hz
Heater, Outdoor Models	24 VAC, 50/60 Hz
Video and Control	RJ-45 100 Base-TX Ethernet
Alarm Input (2)	NC/NO
Alarm Output	Open collector NPN32 VDC @ 150 mA max

Material	Cast aluminum
Color	White or Charcoal
Size (Diameter x Height)	6.02 in. x 4.61 in.(153.0 mm x 133.0 mm), Cast aluminum
Bubble	4.0 in. (10.2 cm), Polycarbonate
